12v Solar Battery Charger – 40w Briefcase

12v Solar Battery Charger – 40w Briefcase
The 40w Solar Battery Briefcase Charger is the ideal solution for all 12v battery charging. Perfect for use as a touring charger on motorhomes, caravans and general battery charging. With a built in regulator, charge controller, it monitors the battery condition and protects against over charging, reverse charging and short circuits. Suitable for sealed and open leisure batteries as well as Gel and SLA. Made with the highest quality monocrystalline solar cell guarantees the most efficient solar charging. 100% water proof and protected against short circuits. Includes a built in, easy setup stand.

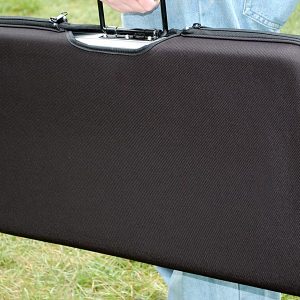

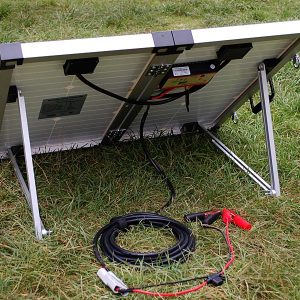

The briefcase comes in a deluxe protective carry case for easy transport and safe storage. Simply unwrap and connect to your battery via the 5m cable and crocodile clips.

This high quality monocrystalline 12v solar panel works in both sunny and overcast conditions and is fully weatherproof. Under average conditions in the UK summer this panel will generate approx 28ah per day.

Optional monitoring is also available through integrating the Solar Briefcase Watt Meter and Power Analyser, offering a range of measurables to provide insight to your panel and battery’s performance.

Specification
40w Monocrystalline Solar Panels

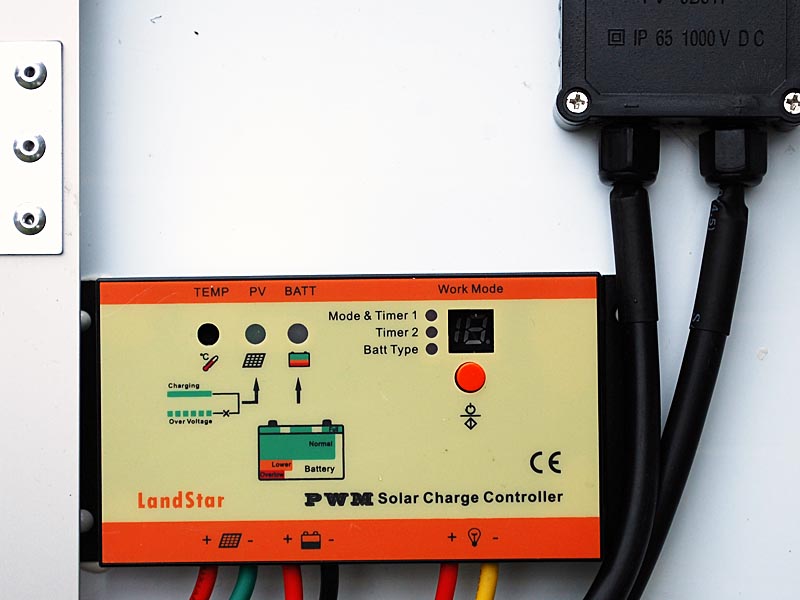

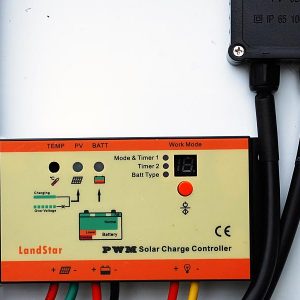

EP Solar Landstar charge controller (fully waterproof, IP66 rated)
Sprung carry handle
High quality rigid canvas carry case
In line fuse between charge controller and battery
Weight 5.4kg
Folded 345mm x 470mm x 60mm

How to Calculate what size 12v Panel you need

If battery indicator light shows red once set up and battery voltage is 12v or above, the system may have configured itself incorrectly. Please disconnect your panel from the battery and cover or fold the panel to keep out of sunlight light. Please then reconnect your panel to the battery, ensuring the battery indicator light is no longer showing red, and re open your panel briefcase.
