£1,019.63 including v.a.t.

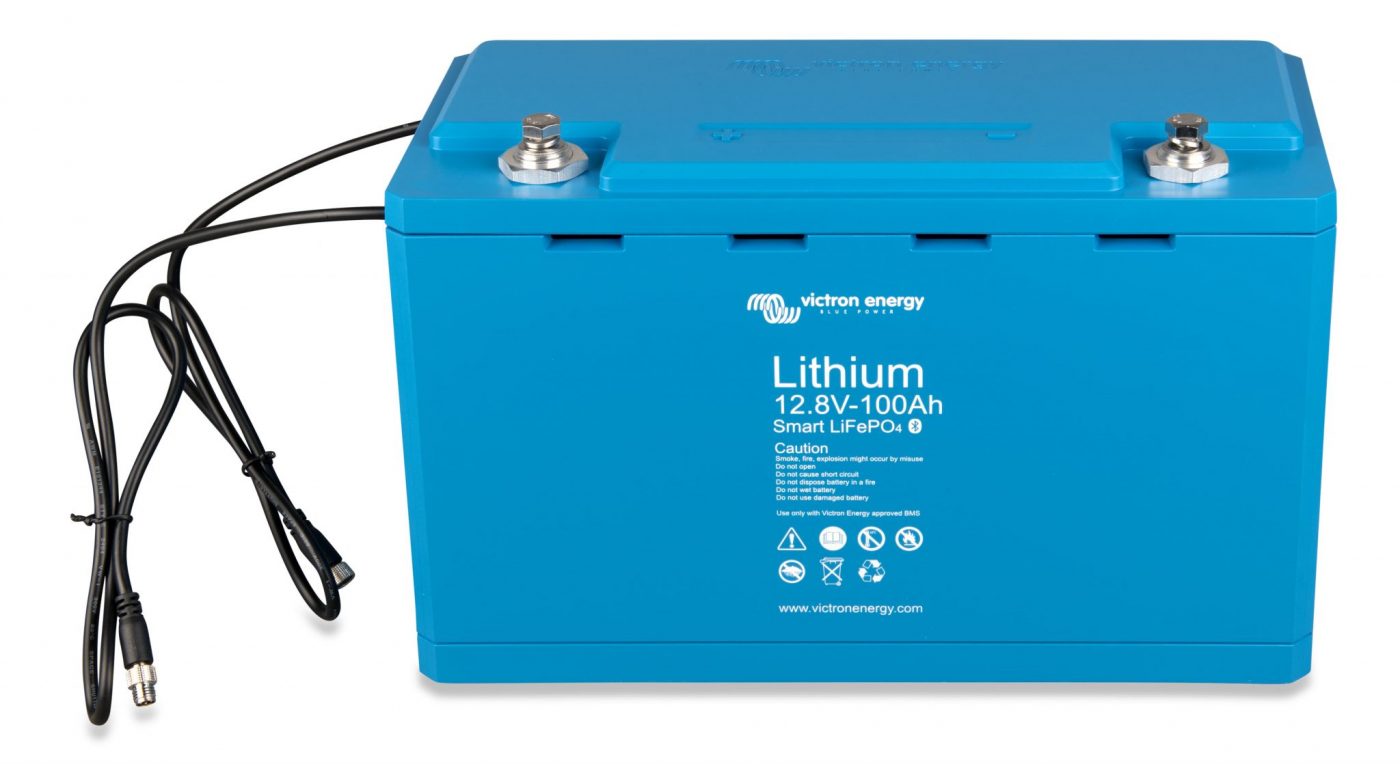

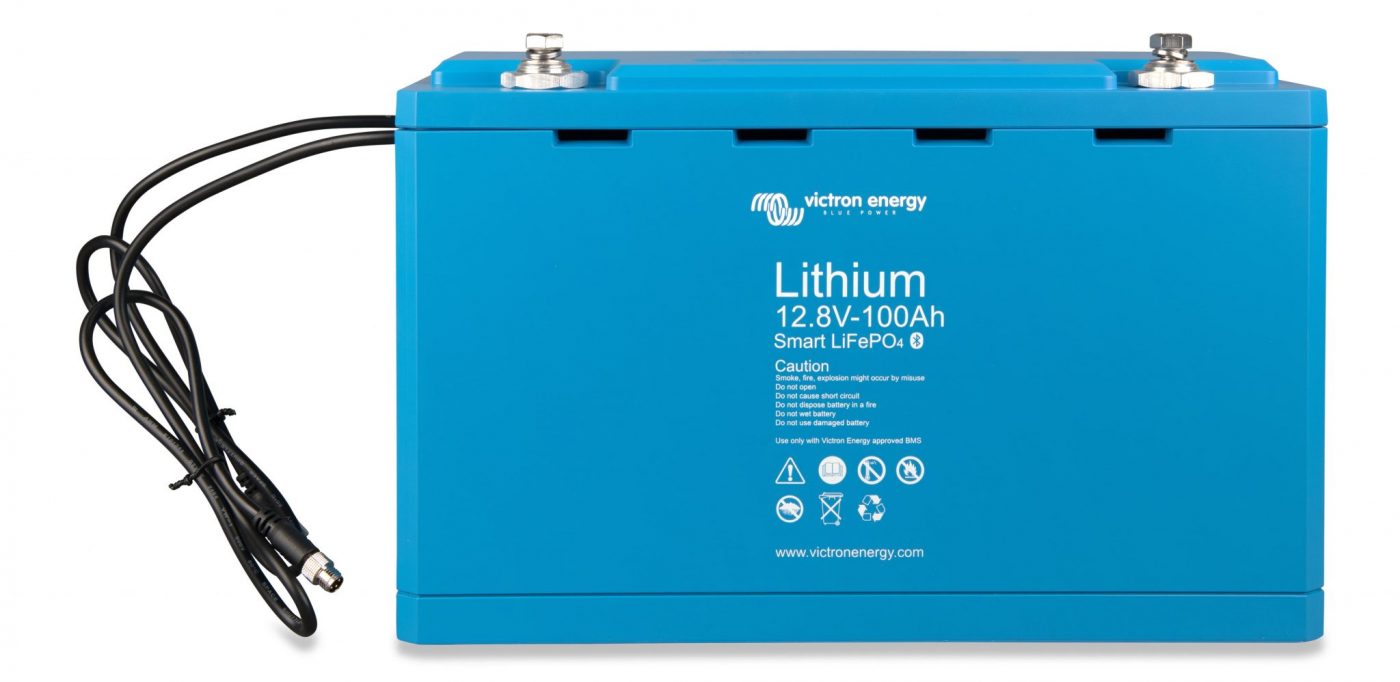

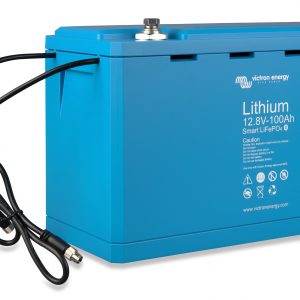

The battery cells in the Smart Lithium batteries are protected against over-charge, under-charge, charging at too low temperatures as well as charging at too high temperatures.
The battery cells in the Smart Lithium batteries are protected against over-charge, under-charge, charging at too low temperatures as well as charging at too high temperatures.
As part of the protection the battery has an integrated Balancing, Temperature and Voltage control system, the BTV. The BTV connects to an external Battery Management System, the BMS.
In case of multiple batteries, the BTVs of several batteries are daisy chained and then connected to the BMS.
You will need a Victron VE.Bus BMS or a Victron smallBMS to use this battery.
| Weight | 13100 g |
|---|
Specification
Nominal Capacity – [email protected]
Cycle Life – 2000 Cycles @ 0.5C charging/discharging, until 80% capacity
Self Discharge – ≤3.5% per month at 25℃
Charging Current – 50Amp
Max Charging Current – 100Amp
Max Discharging Current – 200Amp
Max Continuous Current – 100Amp
Max Charging Voltage – 14.0 ~ 14.6V
Dimensions (LxWxH) – 328 x 172 x 220mm
Weight – Approx. 13.1kg
