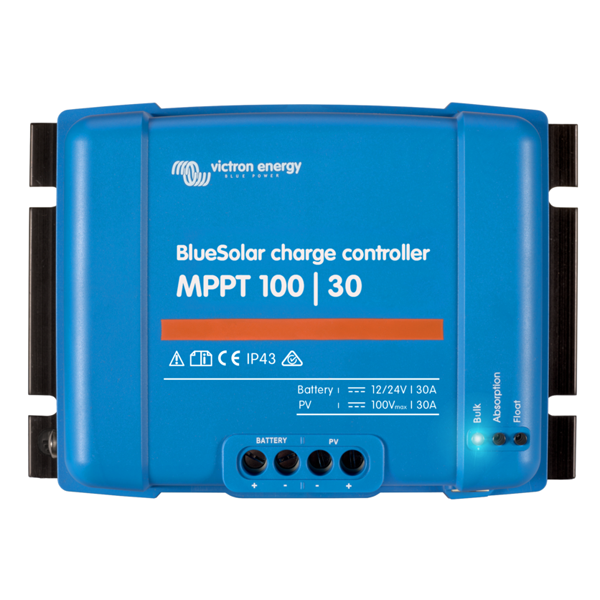

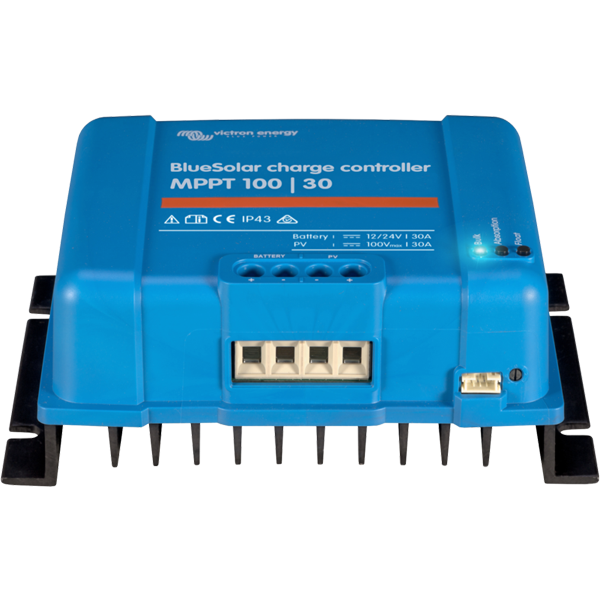

Victron Bluesolar MPPT 100/30
A solar charger gathers energy from your solar panels, and then stores it in your batteries. Because the Victron Blue Solar MPPT Charge Controller uses the latest, fastest technology. BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. The Victron BlueSolar MPPT 100/30 maintains battery health, extending its life.
Sunstore recommend customers use the Victron BlueSolar MPPT 100/30 with solar panels up to 440w (12v) and 880w (24v)
Please click below for more information on Victron Bluesolar MPPT. (pdf)
Features of the Victron Bluesolar MPPT 100/30:
Ultra fast Maximum Power Point Tracking (MPPT)
By constantly monitoring the voltage and current output of your solar panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. In poor conditions, particularly overcast or clouded skies, when light intensity is changing continuously, an ultra fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Flexible charge algorithm Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).
Type: MPPT 100/30
Nominal Battery Voltages (Vdc): 12/24V Auto Select
Max. Battery Current (A): 30
Peak Efficiency: 98%
Max. PV Open Circuit Voltage (V): 100
Remote Temp. Compensation: No
IP Rating IP43
Dimensions (mm) L x W x H 130 x 186 x 70
Weight (Kg) 1.3
