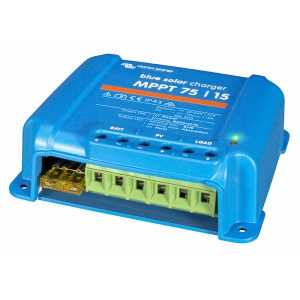

Victron Bluesolar MPPT 75/15
A solar charger gathers energy from your solar panels, and then stores it in your batteries. Because the Victron Blue Solar MPPT Charge Controller uses the latest, fastest technology. BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. The Victron BlueSolar MPPT 75/15 maintains battery health, extending its life.
Sunstore recommend customers use the Victron BlueSolar MPPT 75/15 with solar panels up to 220w (12v) and 440w (24v)
Please click below for more information on Victron Bluesolar MPPT.
Features of the Victron Bluesolar MPPT 75/15:
Ultra fast Maximum Power Point Tracking (MPPT)
By constantly monitoring the voltage and current output of your solar panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. In poor conditions, particularly overcast or clouded skies, when light intensity is changing continuously, an ultra fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
BatteryLife: intelligent battery management
When the solar charge controller is unable to recharge the battery to its full capacity within one day, the result is often that the battery will be continually be cycled between a “partially charged” state and the “end of discharge” state. As a result this mode of operation (no regular full recharge) will destroy a lead acid battery within months, or even weeks. Victrons BatteryLife algorithm monitors the state of charge of the battery and day by day slightly increase the load disconnect level until absorption voltage is reached. The load disconnect level will be modulated so that absorption voltage is reached about once every week from that point onwards.
Type: MPPT 75/15
Nominal Battery Voltages (Vdc): 12/24V Auto Select
Max. Battery Current (A): 15
Peak Efficiency: 98%
Max. PV Open Circuit Voltage (V): 75
Remote Temp. Compensation: No
IP Rating IP43
Dimensions (mm) L x W x H 100 x 113 x 40
Weight (Kg) 0.5
Delivery time 3-5 days on all orders
